Quality guaranteed temperature controller should be used for safety. Also the sensor of the temperature controller should include overheating-preventing sensors with the temperature control sensor. The wire that connects the film should use standard sized wire and the wires should be connected in a way that no two wires would cross each others’ path.

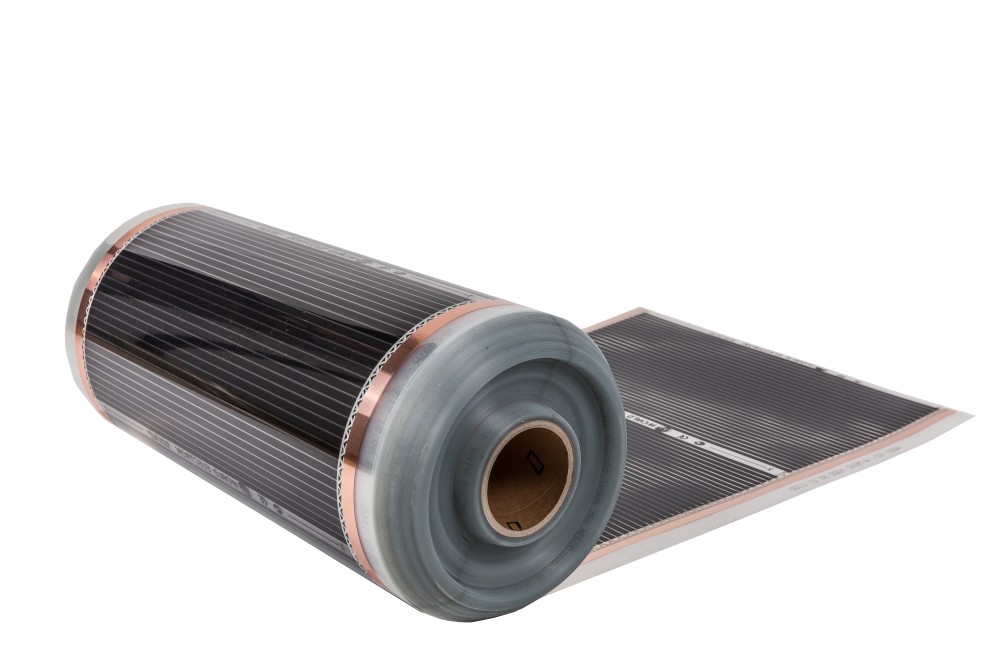

Dimat Heating LTD offers premium category heating films. The company maintain close partnership with the manufacturers. We are the largest distributors of electric heating products with stock in hand in the CEE region. Heating films are available in 5 sizes: 0,25m, 0,30m, 0,50m, 0,80m, 1,00m width. Dimat works with many satisfied partners in the EU. We offer free design and fast delivery service.
Technical Specification
|
| Type |
D203 |
D3025 |
D350 |
| Voltage supply |
230 V |
230 V |
230 V |
| Outputs |
220 W/sqm |
220 W/sqm |
400 W/sqm |
| Film width |
30 cm |
25 cm |
50 cm |
| Film material |
Polyester |
Polyester |
Polyester |
| Product thickness |
0,4 mm |
0,4 mm |
0,4 mm |
| Certificate |
ISO, CE, ROHS |
ISO, CE, ROHS |
ISO, CE, ROHS |
| Cut |
in every 25 cm |
in every 25 cm |
in every 25 cm |
| Operating temperature |
45 ֯ C |
45 ֯ C |
60-75 ? C |
| Application |
Ceiling, Wall |
Church bench |
Wall, Ceiling, Infrasauna, Livestock |
| Control |
Thermostat with floor sensor |
Thermostat with floor sensor |
Thermostat with floor sensor |
| Warranty |
10 years |
10 years |
10 years |
Technical Specification
|
| Type |
D505 |
D508 |
D510 |
| Voltage supply |
230 V |
230 V |
230 V |
| Outputs |
130 W/sqm |
130 W/sqm |
130 W/sqm |
| Film width |
50 cm |
80 cm |
100 cm |
| Film material |
Polyester |
Polyester |
Polyester |
| Product thickness |
0,4 mm |
0,4 mm |
0,4 mm |
| Certificate |
ISO, CE, ROHS |
ISO, CE, ROHS |
ISO, CE, ROHS |
| Cut |
in every 25 cm |
in every 25 cm |
in every 25 cm |
| Operating temperature |
34 ֯ C |
34 ֯ C |
34 ֯ C |
| Application |
Underfloor |
Underfloor |
Underfloor |
| Control |
Thermostat with floor sensor |
Thermostat with floor sensor |
Thermostat with floor sensor |
| Warranty |
10 years |
10 years |
10 years |
Technical Specification
|
| Type |
D605 |
D608 |
D610 |
| Voltage supply |
230 V |
230 V |
230 V |
| Outputs |
100 W/sqm |
100 W/sqm |
100 W/sqm |
| Film width |
50 cm |
80 cm |
100 cm |
| Film material |
Polyester |
Polyester |
Polyester |
| Product thickness |
0,4 mm |
0,4 mm |
0,4 mm |
| Certificate |
ISO, CE, ROHS |
ISO, CE, ROHS |
ISO, CE, ROHS |
| Cut |
in every 25 cm |
in every 25 cm |
in every 25 cm |
| Operating temperature |
30 ֯ C |
30 ֯ C |
30 ֯ C |
| Application |
Underfloor |
Underfloor |
Underfloor |
| Control |
Thermostat with floor sensor |
Thermostat with floor sensor |
Thermostat with floor sensor |
| Warranty |
10 years |
10 years |
10 years |
Technical Specification
|
| Type |
D705 |
D708 |
D710 |
| Voltage supply |
230 V |
230 V |
230 V |
| Outputs |
80 W/sqm |
80 W/sqm |
80 W/sqm |
| Film width |
50 cm |
80 cm |
100 cm |
| Film material |
Polyester |
Polyester |
Polyester |
| Product thickness |
0,4 mm |
0,4 mm |
0,4 mm |
| Certificate |
ISO, CE, ROHS |
ISO, CE, ROHS |
ISO, CE, ROHS |
| Cut |
in every 25 cm |
in every 25 cm |
in every 25 cm |
| Operating temperature |
28 ֯ C |
28 ֯ C |
28 ֯ C |
| Application |
Underfloor in passive house |
Underfloor in passive house |
Underfloor in passive house |
| Control |
Thermostat with floor sensor |
Thermostat with floor sensor |
Thermostat with floor sensor |
| Warranty |
10 years |
10 years |
10 years |
Technical Specification
|
| Type |
D203DC 12 VOLT |
D203DC 24 VOLT |
| Voltage supply |
12 V |
24 V |
| Outputs |
220 W/sqm |
220 W/sqm |
| Film width |
30 cm |
30 cm |
| Film material |
Polyester |
Polyester |
| Product thickness |
0,4 mm |
0,4 mm |
| Certificate |
ISO, CE, ROHS |
ISO, CE, ROHS |
| Cut |
in every 25 cm |
in every 25 cm |
| Operating temperature |
45 ֯ C |
45 ֯ C |
| Application |
In Caravan , in horticulture for root, seedlings |
In Caravan , in horticulture for root, seedlings |
| Control |
Thermostat with floor sensor |
Thermostat with floor sensor |
| Warranty |
10 years |
10 years |
