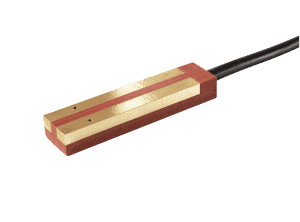

Elektra ETOR55 sensor for gutters
Elektra ETOR55 sensor for gutters
183.78

Elektra ETOR55 sensor for gutters

Voltage
230V
Use
Thermostat sensor
Warranty
2 years
Type
outdoor thermostat
Protection

'>
IP67
In stock : 2 pc
Number of product views: 3652
gross
183.78
Bonus point : 1.75 €
We recommend the following product(s) as accessories

Elektra ETOR-55 thermostat sensor

For outdoor thermostat

The ELEKTRA ETO2 type electronic thermostat can be used for economical snow and ice removal from outdoor surfaces. The condition for ice formation is the presence of temperatures below freezing and moisture.

The ETO2 type thermostat detects both temperature and humidity using its connected sensors, so it only starts the snow and ice removal system if snow or ice can actually form. The thermostat has the option of setting post-heating so that all snow and ice can melt safely. The ETO2 type is suitable for controlling one or two defrosting circuits. (e.g. driveway and sidewalk)

Maximum load capacity 3 x 16 A (3 x 3 600w).

The ETO2 thermostat can be mounted on a DIN rail. Dimensions: 90 x 156 x 45 mm

The thermostat has 2 ETOG-56 ground sensors for temperature and humidity detection. If you want to use the controller for two defrost circuits.



Or ETOR55 channel, used for defrosting the water heater.

It can be divided into paving stones with etog56 and combined with the channel sensor ETOR55.

It is used for economical snow and ice melting of outdoor surfaces and gutters. It detects temperature and humidity via the connected sensors. The thermostat only switches on when the temperature drops below the set value and the precipitation sensor detects moisture. The device must be mounted on a DIN rail in the protective box supplied as an accessory.





ETO2G THERMOSTAT TECHNICAL DATA
SUPPLY VOLTAGE 120/240V AC -10% 50/60HZ
BUILT-IN ELECTRONIC POWER SUPPLY UNIT 0.24V DC 8VA
3 OUTPUT RELAYS 0.3X16A
ALARM RELAY MAX. 5A
ON/OFF DIFFERENTIAL 0.3C
TEMPERATURE RANGE 0.0°C - 5°C
PROTECTION IP20

INSTALLATION DIMENSIONS

HEIGHTXWIDTHXDEPTH

90mmX156mmx45mm
Info
Fixation
installable in a rainwater drainage channel
Article No.
5999572232511
Weight
1.175 kg/pc
